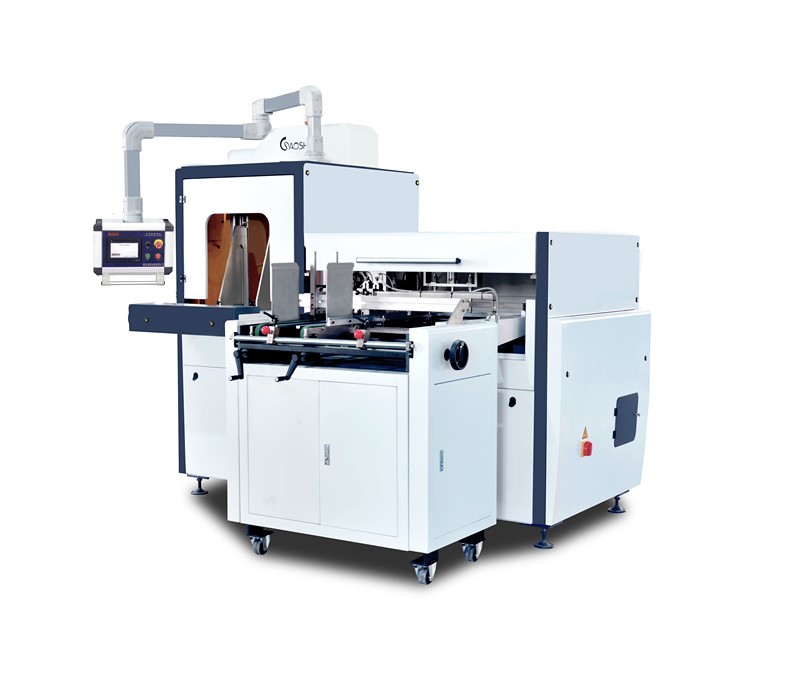

1. 设备特点Features:
1.GS - 450 use hot glue and cold glue to solve the problem of long cooling time of cold glue ,crisp and easy broke of MDF,greatly improve the production.GS-450是一款利用冷热双胶喷胶系统解决了密度板的冷胶凝固时间长，脆，易碎等问题，大大提高了生产效率。
3.The machine adopts automatic Omron PLC touching screen which display data, operate and control system cleanly, and also display fault detection and alarm.本机采用欧姆龙的人机界面操作和PLC自动控制。人机对话实现系统的工作数据显示、操作与控制，并备有故障侦测与报警显示。

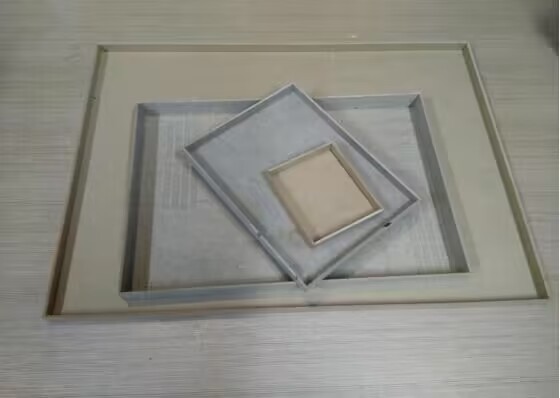

4.This machine adopts the most advanced technology of three boards box making and use microcomputer to control botom plate and sides plates to make box,which greatly saves the cost of raw materials.本机采用国内首创的三板制盒工艺，由底板和两侧板通过微机控制实现拼盒，极大的节省了原材料成本

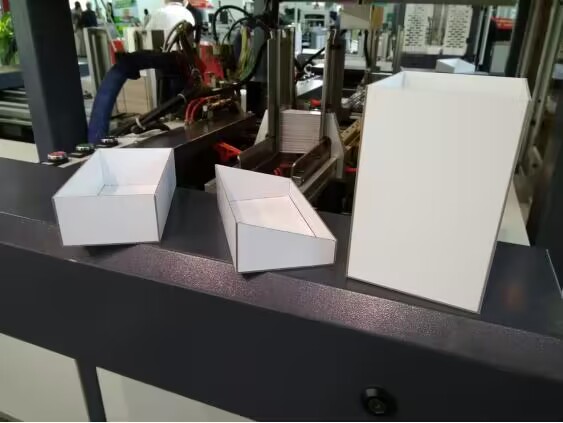

2.This equipment is widely used in the production of tea box, wine box, moon cake box, gift boxes and other luxury box.本设备广泛应用于生产茶叶盒、酒盒、月饼盒、礼品盒等高档盒子。
2. 主要技术参数Main Technical Parameters:
|
型号Mode |
GSM-450 |
|
适用材料MATERIALS |
纸板，密度板paper,MDF |
|
适用纸板厚度 Paper thickness |
1.5-5MM |
|
最大密度板盒尺寸Max MDF box out size： |
450x350x180mm(L*W*H) |
|
最小密度板盒尺寸Min MDF box inner size： |
100x80x20mm(L*W*H) |
|
最大纸盒尺寸Max MDF box out size： |
350x250x180mm(L*W*H) |
|
最小纸盒尺寸Min MDF box inner size： |
100x80x20mm(L*W*H) |
|
生产速度Produce speed |
25～35pcs/min |
|
胶容量Glue loader capacity |
6L |
|
气源要求Air requirements |
300L/min 0.8Mpa |
|
胶类型Glue type |
热熔胶Hot-melt glue,白胶cold glue |
|
机器功率Power |
7.5KW/380v |
|
Machine size机器尺寸 |
3150*2400*2400mm |
|
Machine weight 机器重量 |
2000Kg |
Video link :https://youtu.be/1UzFSl7SHSI
More details please contace Ellen Qiu :+86-15057324868
If you have any enquiry about quotation or cooperation,please feel free to email us at ellenqiu@wzgsjx.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
- Subject:
- *Name:
- *Email:
- Company Name:
- Tel:
- Fax:
- Country:
- Message:
1. 设备特点Features:
1.GSM - 500 use hot glue and cold glue to solve the problem of complication of 5 pieces MDF box making and the problem of long cooling time of cold glue ,crisp and easy broke of MDF,greatly improve the production.GSM-500是一款利用冷热双胶喷胶系统解决了密度板5块板制盒工艺繁琐以及冷胶凝固时间长，脆，易碎等问题，大大提高了生产效率。
2.The machine adopts automatic Omron PLC touching screen which display data, operate and control system cleanly, and also display fault detection and alarm.本机采用欧姆龙的人机界面操作和PLC自动控制。人机对话实现系统的工作数据显示、操作与控制，并备有故障侦测与报警显示。
3.This machine adopts the most advanced technology of 5 boards box making.it adopts micro-computer to control the baseboards and 4 side boards to make box, which greatly saves the cost of raw materials.本机采用国内首创的5板制盒工艺，由底板和4侧板通过微机控制实现拼盒，极大地节约人工成本。
4.This equipment is widely used in the production of tea box, electronic box，wine box, moon cake box, gift boxes and other luxury box.本设备广泛应用于生产茶叶盒、，电子盒、酒盒、月饼盒、礼品盒等高档盒子。
