1. Features:

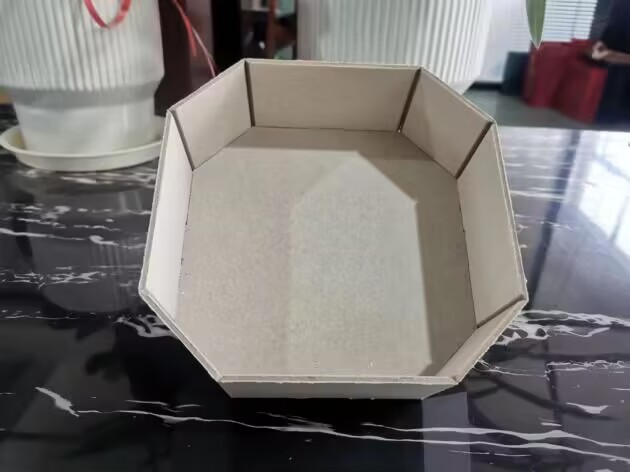

1) This machine uses the hot melt glue to make up box replace of making box by hand , which make octagonal box automatically and easily.
2) It adopts unique forming structure, solve problem of manual making ,which making octagonal box automatically.
3) The machine adopts automatic Omron PLC touching screen which display data, operate and control system cleanly, and also display fault detection and alarm. It forming box one time autoamtically.

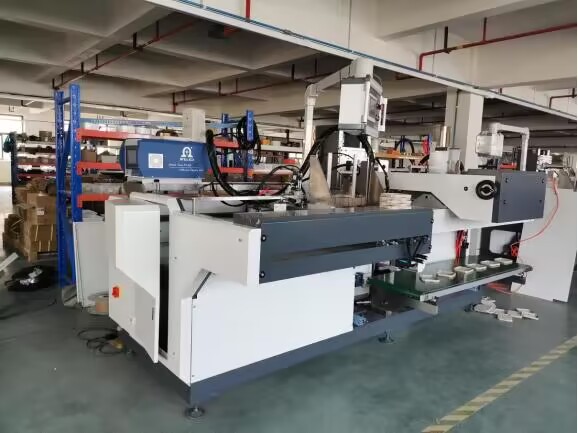

4) The octagonal box making machine speed can be 15-25pcs/min, which improve box making efficiency and make high precision and beautiful box
5) This machine adopts two boards box making crafts. it use microcomputer to control the bottom plate and rounding plate to make up the box, which greatly saves the cost of raw materials.
6) The machine adopts the downdraught feeding, which can feed baseboard and rounding plate with non-stop machine and achieve continuous production.
2.Advantages:
1).zero wast:no need throw the corner paper
2).high precision:make angular and beautiful box
3).save labor:replaces the manul box making
4).high effective, the speed can be 15-25pcs/min
5).good yield rate:98% good boxes.
3. Main Technical Parameters:
|
Mode |
GS-6060 |
|
Materials |
Grey-board(laminated,single-ply),ect. |
|
Paper thickness |
1.5-5MM |
|
Max box size |
350*350*150mm(L*W*H)(out size） |
|
Min box size |
120*120*20mm(L*W*H)(inner size） |
|
1200≥d=perimeter≥400，chamfer length≥15mm |
|
|
Produce speed |
10～22pcs/min |
|
Glue loader capacity |
6L |
|
Air supply requirements |
300L/min 0.8Mpa |
|
Glue type |
Hot-melt glue |
|
Power |
7.5KW/380v |
|
Machine size |
3660MM*1850MM*2200MM |
|
Machine weight |
2300kg |
Video link: https://youtu.be/E9JnSR2cAVo
More details please contact Ellen Qiu:+86-15057324868
