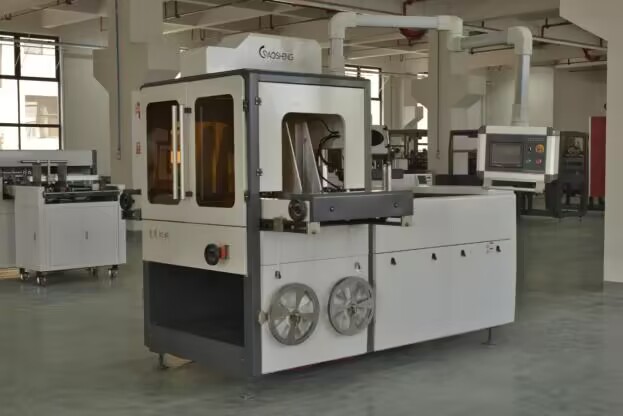

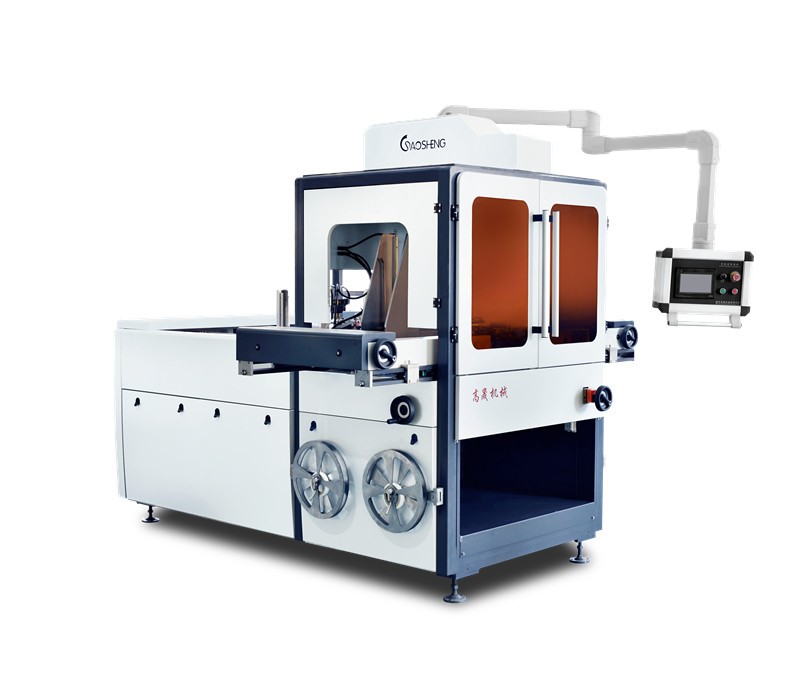

1.GS-360T 全自动贴角拼板制盒机式专门为解决现有自动化制盒工艺中原材料浪费严重等问题而开发的一款全新工艺的制盒专用设备。
GS-360T automatic 3 boards gluing and box corner taping box making machine is specially designed to solve the problem of raw materials waste and other problems.
2.GS-360T 是一款全自动3板拼板贴角机，先用热熔胶粘合再用胶带再次粘合加固。

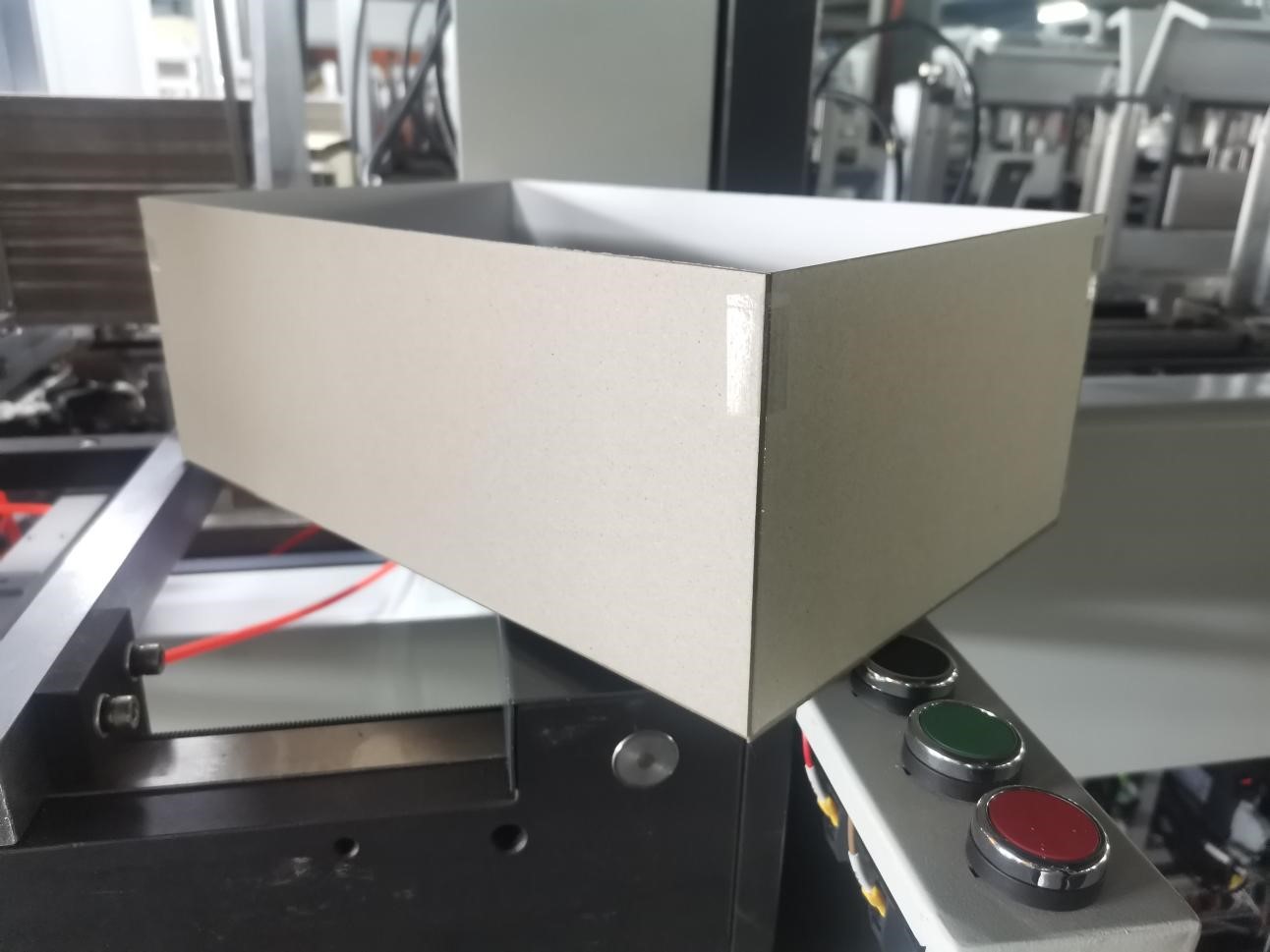

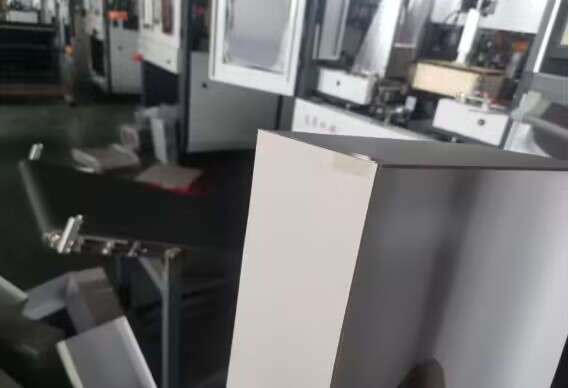

GS-360T automatic 3 boards gluing and box corner taping box making machine make box with hot melt glue and then tape 4 corners to make box much stronger.
3.本机采用欧姆龙的人机界面操作和PLC自动控制。人机对话实现系统的工作数据显示、操作与控制，并备有故障侦测与报警显示。
The machine adopts automatic Omron PLC touching screen which display data, operate and control system cleanly, and also display fault detection and alarm.
4.本机采用独特的分板下抽式送料，可实现底板、侧板不停机加料，最终达到连续不断生产。
The machine adopts the unique downdraught feeding, which can feed baseboard and side plates with non-stop machine and achieve continuous production.
5.本设备主要用于生产手机盒、鞋盒、茶叶盒、酒盒、月饼盒、礼品盒等高档纸盒。
This equipment is widely used in the production of mobile phone box, shoes box, tea box, wine box, moon cake box, gift boxes and other luxury box.
主要技术指标和参数Main Technical Parameters:
|
Mode |
GS-360T |
|
Materials 材料 |
Grey-board ect.灰板。 |
|
Paper thickness 适用纸板厚度： ： |
1.5-5MM |
|
Max box size：最大盒子尺寸（外径） |
400*300*200mm(L*W*H) |
|
Min box size最小盒子尺寸（外径）： |
100*80*30mm(L*W*H) |
|
140≥d=b+2*h≤700 |
|
|
Produce speed 生产速度： |
20～25pcs/min |
|
Glue loader capacity |
6L |
|
Air supply requirements 气源要求： |
300L/min 0.8Mpa |
|
Glue type |
Hot-melt glue |
|
Power 机器最大功率： |
8.5KW/380v |
|
Machine size 整机尺寸： |
2600*2200*2200mm |
|
Machine weight 机器重量 |
1400kg |
Video link : https://youtu.be/s8wEs71_z2s
More details please contace Ellen Qiu ：+86-15057324868（WhatsApp/wechat）
If you have any enquiry about quotation or cooperation,please feel free to email us at ellenqiu@wzgsjx.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
- Subject:
- *Name:
- *Email:
- Company Name:
- Tel:
- Fax:
- Country:
- Message:
1.Features and functions: 特点及功能：
1. GS-4030 全自动拼板式制盒机式专门为解决现有自动化制盒工艺中原材料浪费严重等问题而开发的一款全新工艺的制盒专用设备。GS-4030 automatic boards splicing box corner taping machine is specially designed to solve the problem of raw materials waste and other problems.
2. 本机采用拼板贴角工艺，既节约材料又保证盒子老古度。It adopts 3 boards splicing and corner taping technology, which not only save paper materials and also keep box strong enough .
3. It is designed with dust protect and good looking Tape four corners of the box in one time.具有防尘、美观的设计，一次性将盒子的四个角粘紧。
4. 该机可与天地盖制盒机联机。It can connect with full automatic rigid box making machines with full line.
5. 本设备主要用于生产鞋盒等高档纸盒。This equipment is widely used in the production f shoes box and other luxury boxes.
