一．设备特点及用途
Features and function:

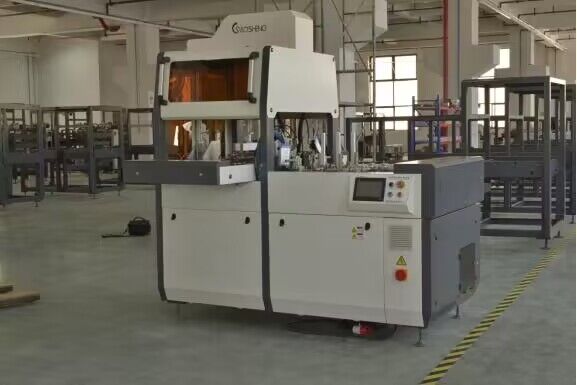

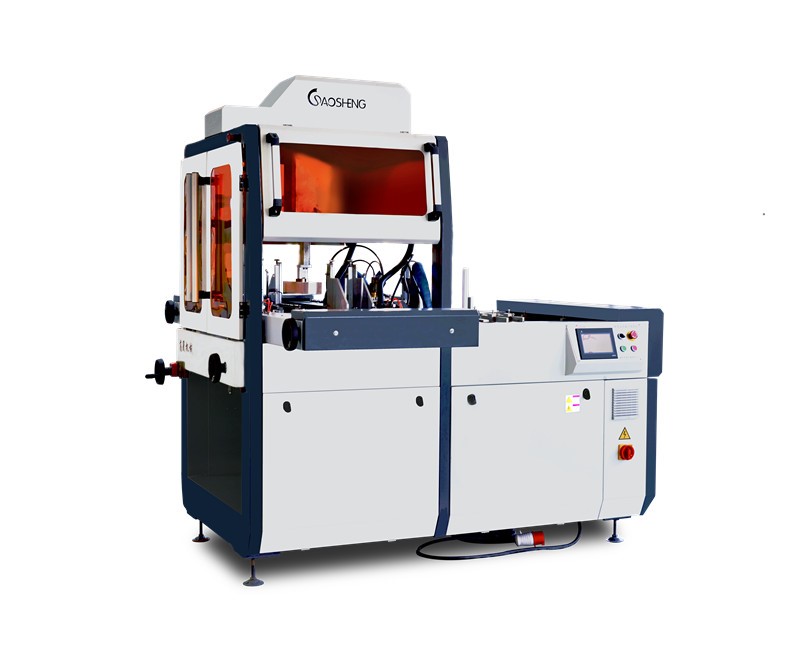

1.GS-230# 是一款全自动井字喷胶制盒机，无需用胶带粘合。

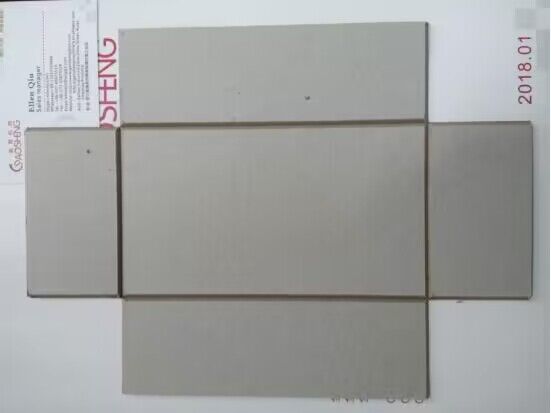

GS - 230# spray glue on # paper boards to make box without tape at corner.
2.本机采用国内首创的井字喷胶工艺，，产品更美观。
This machine adopts the #board spray glue technology which make box without corner tape mark,the box can be much more beautiful.
3.本机采用热熔胶粘盒工艺将完全取代以往胶带粘盒工艺，可以根据产品要求，对喷胶长度、宽度、起始点、收尾点进行调节，操作方便。
This machine uses the hot melt glue to make up box replace of use tape to make box, which adjust the spray adhesive length, width, starting point and ending point according to the product requirements. It is easy operate.

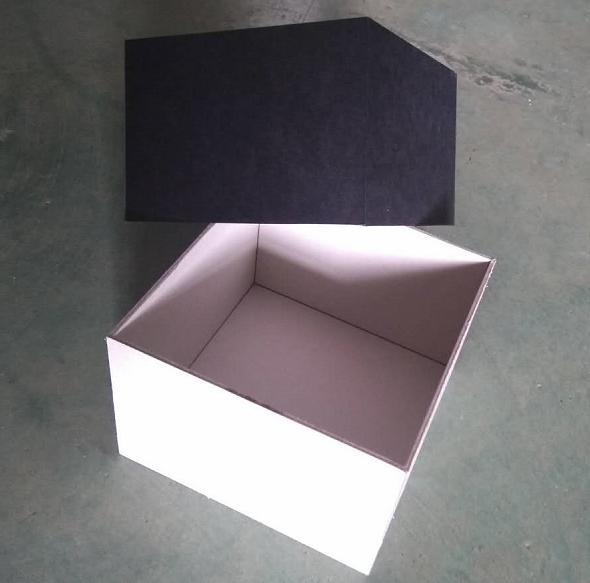

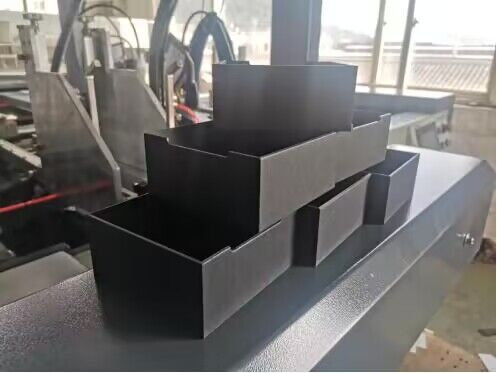

4.本设备主要用于生产手机盒、鞋盒、茶叶盒、酒盒、月饼盒、礼品盒等高档纸盒。
This equipment is widely used for the production of mobile phone box, shoes box, tea box, wine box, moon cake box, gift boxes and other luxury box.
二．主要技术指标和参数
Main Technical Parameters:
|
型号Mode |
GS-230# |
|
材料Materials |
Grey-board灰板 |
|
适用纸板厚度 Paper thickness |
1.5-5MM |
|
最大外径Max box size：(L*W*H) |
|
|
井字喷# paper board type:300x180x100mm |
|
|
最小外径Min box size：(L*W*H) |
|
|
井字喷# paper board type:100x80x30mm |
|
|
生产速度Produce speed |
20～35pcs/min |
|
胶容量Glue loader capacity |
6L |
|
气源要求Air requirements |
300L/min 0.8Mpa |
|
胶类型Glue type |
热熔胶Hot-melt glue |
|
机器功率Power |
5.5KW/380v |
|
Machine size机器尺寸 |
2100*2300*2100mm |
|
Machine weight 机器重量 |
1200kg |
video link :https://youtu.be/xdxJjn-iO60Q
More details please contace Ellen Qiu :+86-15057324868
