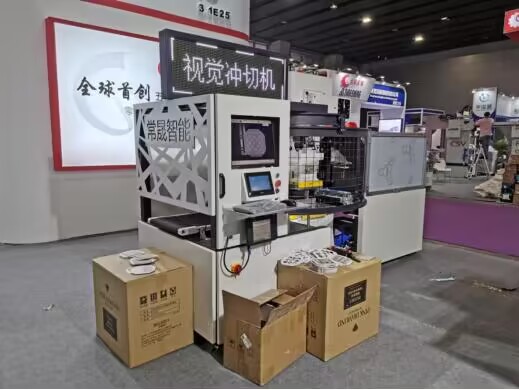

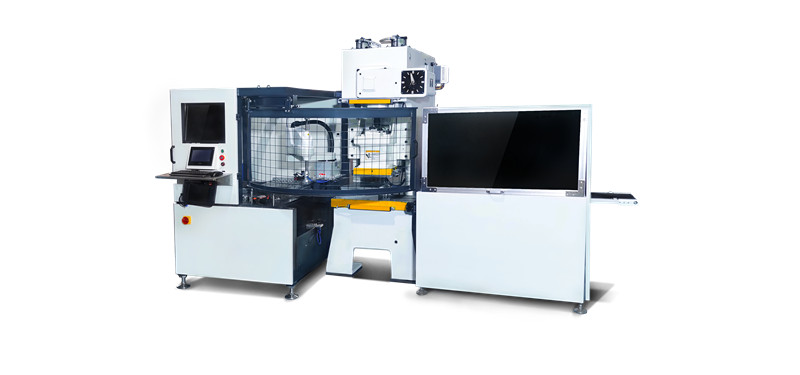

1.Features and functions:

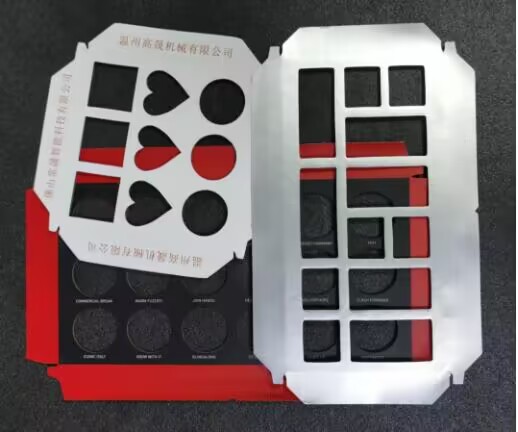

(1) CS-CQ240 automatic die cutting machine is specially designed eye shadow plate which punching plate and waste removal and integration of safe and efficient innovative! This equipment is mainly used for precise positioning punching and waste cleaning of eye shadow plate.
(2) The machine adopts CCD image positioning system, automatic optical calibration of image and edge deviation, overprinting accuracy is not affected by the cumulative errors of printing and other previous processes, the product accuracy reaches ±0.1mm.
(3) It punch and waste clean in one time with Safely and efficiently,which replace manual die cutting machine and save labor cost (waste removal person and technicians).
(4) It Suitable for a variety of materials and thickness, as well as a variety of product types.
(5) It Can be connected with the positioning line or manual line production, no need the secondary putting plate/moving
(6) It also Save storage area to avoid product scratch and other quality problems, make the production more flexible.
2.Main parameters:
Model |
CS-CQ-240 |
Materials |
Eyeshadow board,Hard cover ect. |
Greyboard Thickness |
1-3mm |
Max.finished product size |
240X180mm |
Min.finished product size |
60x60mm |
25ton puncher,max. Knife length :3m |
|
Speed |
20-25 pcs/min |
Air Supply |
150L/min, 0.8MPa |
Adjust way |
PLC control |
Conveyor |
By belt |
Power |
3KW/380v |
Dimension |
L3200xW1800xH2100mm |
Weight |
2600kg |
Video link :https://youtu.be/40gOeG6ALGM
More details please contace Ellen Qiu :+86-15057324868
