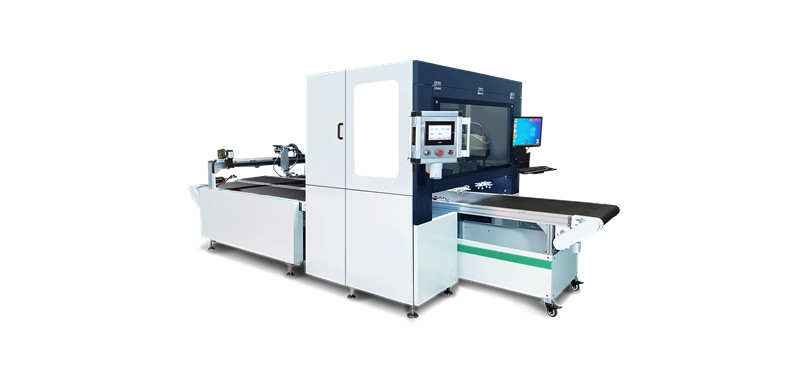

CS-450AT automatic visual type embossing machine

一.用途 Features and functions:

1.CS-AT450 全自动视觉凹凸机是专门为解决现有凹凸工艺 中套位不准,凹凸层次不够立体,凹凸精准度受前工序累计 误差影响等问题而开发的一款在盒子成型后,再用视觉图像 定位做击凹凸的专用设备。
CS-AT450 Fully automatic visual embossing machine is specially designed to solve problems existing concave-convex processes, like register not precisely, concave and convex level is not three-dimensional, concave and convex accuracy by the previous process accumulated Error effects and other problems. It embosses on a finished box after forming, then use visual images to position and then embossing and dembossing.

2.本机采用 CCD 影像定位系统,自动光学校准图像和边缘偏 差,套印凹凸精准度不受印刷等前道各工序累计误差影响,产品精度达到±0.15mm。

It adopts CCD vision position system,automatic optical lever pictures and edge correct ,which make the precision wont affect by the the former working procedure and the precion can be +-0.15mm.


It make three-dimensional bump more lively. The bump can be from 1mm to 4 mm according to the picture and surface art effective.

4. 盒子成型后再进行击凹凸,有效减少前道各工序影响凹凸效果的衰减.

It make the process at the last part which can reduce the affects from the former working procedure.

This equipment is mainly used for the production of mobile phone box, shoe box, tea box, wine box, moon cake boxes, gift boxes and other high-end cardboard boxes.




Materials 适用材料

Finished boxes, hard cover 成品盒,皮壳ect..


Paperboard :250-2500gsm Cardboard :0.5-4mm

Embossing size激凸尺寸

Max. :300x250mm

Min. :80x80mm

Box Size盒子尺寸

Max. :300x300X90mm

Min. :50x50x5mm

Cover Size 皮壳尺寸



Precision 精度


Speed 速度

15-25 pcs/min

Pressure 压力


Bump height激凸高度


Air Supply气压

150L/min, 0.8MPa


2.4KW/380v+3.6KW heating power

Dimension 机器尺寸


Weight 重量


Video link :https://youtu.be/EnivObA1E8c

More details please contact Ellen Qiu:+86-15057324868 (whatsapp/wechat/zalo)
